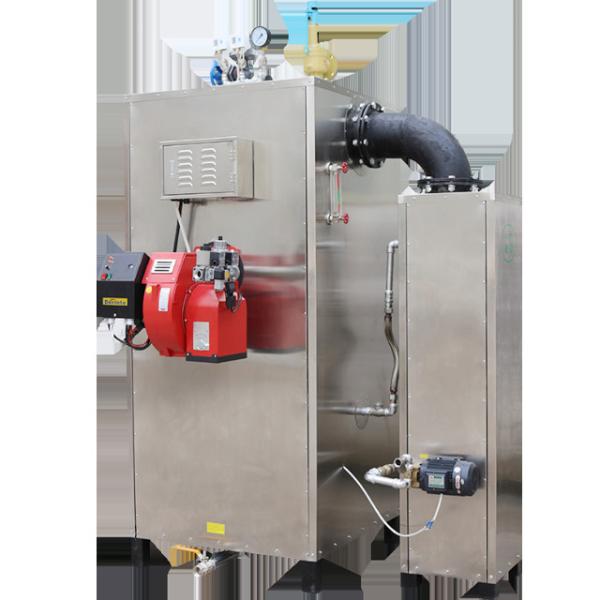

Automatic 0.5Ton Industrial Gas Fired Steam Boilers 500kg/H Natural Origin

Automatic 0.5Ton gas boiler Unique China Style Industrial Sales Output Wet steam Natural Origin Type 500kg/h

Comprehensive Introduction

The gas steam generator produces pure steam by firing gas (including natural gas,liquefied gas, LPG, propane).The main components are gas burner, water tank, water-feeding pump, controlling system, furnace, pressure controller, pressure gauge, safety valve, sensor of water level. Comparing to traditonal steam boiler(coal, wood,pellet,biomass fired), gas steam boiler is more eco-friendly and efficent, without men on duty

The gas steam boiler is widely used in food cooking, clothes flat ironing, industrial cleaning, equipment cleaning, sauna room, sterilization, central heating etc.

product parameter

Evaporation	500 KG/H
Steam pressure	0.7 Mpa
Designed fuel	diesel, gas, liquefied gas
Steam temperature	171 Degree celsius
Gas consumption	45m3/h(natural gas) 35 m3/h(liquefied gas) 35KG/h(diesel)
Voltage	380 V
Water tank volume	49L
Water pressure	1.05 Mpa
Waste outlet diameter	DN40
Steam outlet diameter	DN20
Smoke outlet diameter	159mm
Weight	1500KG
Dimension	800*760*2180 mm

Our advantages

1.High energy-saving efficiency

The gas steam generator adopts high-quality burner, designed with vertical 2 return-trip structure, the burning level is higher with over 90% thermal efficiency .

2. High steam capacity

The gas powered steam generator can output steam in 10 minutes and evaporates 300kg/h.

3. Easy to operate

The gas powered steam generator with steam capacity 300kg/h are smart fully automatic operated with accurate computerized circuit board.All functions are dispalyed on the control panel, the working process like steam temperature and pressure adjustable and controllable.

4. Highly safe

Safer than ever with 6 protection systems: pressure regulator system, Overpressure automatic protection, water lack protection, dry-fire protection, anti-explosion system.
5.With national patent certificate
The gas steam boiler is patented product with China patent certificate, guaranting the quality and cost performance, always environment-friendly with few noise and no smog.

Detailed Images

Packing&Shipping

The steam generator product will be packed with wood material to make the delivery safe, freight way by air or by sea.

        Energy Smart Technology(Dong Guan) Co., Ltd.Located in Dongguan, Guangdong, China, known as the "world factory". Professional r & D, production, sales of electric steam generator, gas steam boiler, steam shrinkage machine, steam washing machine, steam ironing machine and other kinds of steam equipment.
        Have 10 years of steam equipment production experience, engineer team of 8 people, service more than 4000 customers. The machine is sold all over the world, according to the local voltage and different needs, for customers to customize different products. The machine provides a one-year warranty, technical staff 7*24 hours to provide after-sales service, to solve your various use problems.
